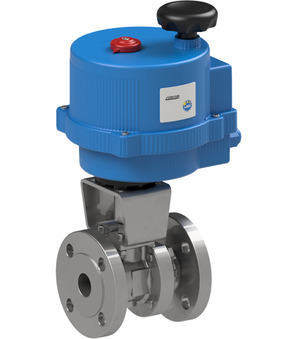

BA392-100-0H

Flanged ball valve; ATEX II 2 G/D c T3; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body Steel A352-LCB; Ball 1.4301; Seals PTFE/FKM; Pressure range 0…16bar; Medium temperature -10...+160°C; Nominal diameter 100mm; Flange PN16; Length 190mm

Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 190Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 100-240VAC; Protection class IP67

Mounting bracket Close Ball valve 765000/765001-DN100
