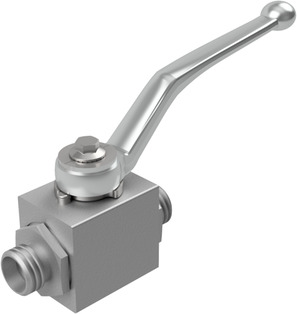

High pressure ball valve BA362-20S-L

High pressure ball valve Series BA362-L; Male thread according to ISO 8434-1 (DIN 2353); Body Zinc plated steel; Ball Stainless steel; Ball seals Cast iron; Stem seal Special seals; O-rings FKM; Medium temperature -20...+100°C; For Isocyanate; Connection 20S/M30X2; Nominal diameter 15mm; Pressure range 0…420bar; Length 90mm

Intrastat No.: 84818081
Country of origin: Germany
Weight: 0.81 Kg
Short Itemnumber:BA36220SL
https://www.stasto.eu/web/image/product.template/158492/image_1920?unique=7acaf74

high pressure ball valve series BA362-L; male thread according to ISO 8434-1 (DIN 2353); body zinc plated steel; ball stainless steel; ball seals cast iron; stem seal special seals; o-rings FKM; medium temperature -20...+100°C; for isocyanate; connection 20S/M30X2; nominal diameter 15mm; pressure range 0…420bar; length 90mm

999.999,00 € 999999.0 EUR 999.999,00 €

price on request

  • Connection
  • Connection
  • DN
  • Length
  • Pressure range

This combination does not exist.

Availability:
Contact Us
dimension
Connection 20S/M30X2, 20S/M30X2
DN 15 mm
Length 90 mm
pressure
Pressure range 0...420 bar
No spare parts are available for this product.
