Flanged ball valve with pneumatic actuator Series BA353 Store

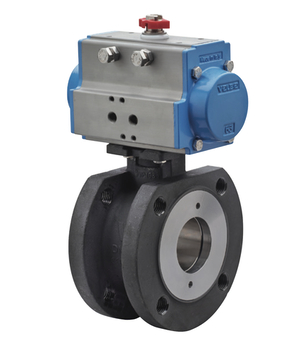

Flanged ball valve with pneumatic actuator BA353-80-D0-A

Name: Flanged ball valve with pneumatic actuator BA353-80-D0-A
Brand: STASTO
SKU: BA353-80-D0-A
Price: 1055.5 EUR
Availability: InStock

Flanged ball valve with pneumatic actuator Series BA353; ATEX II 2 G/D; Flange PN16; Body Steel A352-LCB; Ball 1.4301; Seals MPTFE/PTFE/FKM; Double acting actuator ATEX II 2G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+180°C; Pressure range 0...16bar; Nominal diameter 80mm; Length 122mm; Actuator PAD075

Intrastat No.: 84818081
Country of origin: Italy
Weight: 16.79 Kg
Short Itemnumber:BA35380D0A

flanged ball valve with pneumatic actuator series BA353; ATEX II 2 G/D; flange PN16; body steel A352-LCB; ball AISI 304; seals MPTFE/PTFE/FKM; double acting actuator ATEX II 2G/D c T6; control pressure 5,5...8bar; medium temperature -20...+180°C; pressure range 0...16bar; nominal diameter 80mm; length 122mm; actuator PAD075

1.055,50 € 1055.5 EUR 1.055,50 €

DN
- 80 mm
Length
- 122 mm
Design
- ATEX
Actuator
- PAD075

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	80 mm
Length	122 mm
design
Design	ATEX
characteristics
Actuator	PAD075

BA353-80-B-A x 1.0

BA353-80-B-A

Flanged ball valve; ATEX II 2G/D c T3; Bare shaft; Flange PN16; Full bore; Body Steel; Ball 1.4301; Seals MPTFE/PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+180°C; Nominal diameter 80mm; Length 122mm; Flange ISO5211 F07; Square 14mm

Add to Cart

PAD075 x 1.0

Pneumatic actuator PAD075

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm
