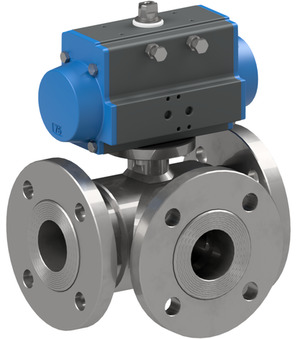

Flanged ball valve with pneumatic actuator BA352-25-S0-A

Name: Flanged ball valve with pneumatic actuator BA352-25-S0-A
Brand: STASTO
SKU: BA352-25-S0-A
Price: 1598.6 EUR
Availability: InStock

flanged ball valve with pneumatic actuator; ATEX II 2 G/D T4; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals PTFE-metal reinforced/Kalrez; single acting actuator; control pressure 5,5...8bar; medium temperature -30...+200°C; nominal diameter 25mm; length 150mm; pressure range 0...40bar; flange PN40; actuator PAS1005; ball L

Intrastat No.: 84818081
Country of origin: Italy
Weight: 7.71 Kg
Short Itemnumber: BA35225S0A

1.598,60 € 1598.6 EUR 1.598,60 €

DN
- 25 mm
Length
- 150 mm
Flange
- PN40
Ball
- L
Design
- ATEX
Pressure range
- 0...40 bar
Actuator
- PAS1005

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	25 mm
Length	150 mm
Flange	PN40
Designs
Ball	L
design
Design	ATEX
pressure
Pressure range	0...40 bar
characteristics
Actuator	PAS1005

BA352-25-B-A x 1.0

Flanged ball valve BA352-25-B-A

flanged ball valve; ATEX II 2 G/D T4; bare shaft; 3-way-type; sealing on three ports; full bore; body AISI 316L polished; ball AISI 316L; seals PTFE-metal reinforced/Kalrez; medium temperature -30...+200°C; nominal diameter 25mm; length 150mm; pressure range 0-40bar; flange PN40; ball L; flange ISO5211 F05; square 14mm

Add to Cart

PAS1005 x 1.0

Pneumatic actuator PAS1005

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm

Add to Cart

04808007001 x 1.0

04808007001

Mounting bridge; Zinc plated steel; F05/F07-F05; Height 60mm

Add to Cart

IV/00028/09 x 1.0

IV/00028/09

Bolt; 1.4305; Diameter 30mm; Height of the bolt 59mm; Male square 17mm; Height of the male square 18mm; Female square 14mm; Height of the female square 14mm
