STASTO Allgemeine Preisliste (EUR)
Other materiales - A03 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Other materiales - A03
  6. BA352-15-S0-A

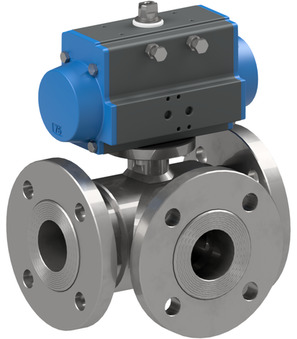

BA352-15-S0-A

BA352-15-S0-A

flanged ball valve with pneumatic actuator; ATEX II 2 G/D T4; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals PTFE-metal reinforced/Kalrez; single acting actuator; control pressure 5,5...8bar; medium temperature -30...+200°C; nominal diameter 15mm; length 130mm; pressure range 0...40bar; flange PN40; actuator PAS0755; ball L

Intrastat No.: 84818081
Country of origin: Italy
Short Itemnumber: BA35215S0A
https://www.stasto.eu/web/image/product.template/218298/image_1920?unique=514d03f

flanged ball valve with pneumatic actuator; ATEX II 2 G/D T4; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals PTFE-metal reinforced/Kalrez; single acting actuator; control pressure 5,5...8bar; medium temperature -30...+200°C; nominal diameter 15mm; length 130mm; pressure range 0...40bar; flange PN40; actuator PAS0755; ball L

1.069,40 € 1069.4 EUR 1.069,40 €

price on request

  • DN
  • Length
  • Flange
  • Ball
  • Design
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 25 mm
Length 150 mm
Flange PN40
Designs
Ball L
design
Design ATEX
pressure
Pressure range 0...40 bar
characteristics
Actuator PAS1005
Flanged ball valve BA352-15-B-A
BA352-15-B-A x 1.0
Flanged ball valve BA352-15-B-A
flanged ball valve; ATEX II 2 G/D T4; bare shaft; 3-way-type; sealing on three ports; full bore; body AISI 316L polished; ball AISI 316L; seals PTFE-metal reinforced/Kalrez; medium temperature -30...+200°C; nominal diameter 15mm; length 130mm; pressure range 0-40bar; flange PN40; ball L; flange ISO5211 F03; square 9mm
Add to Cart
Pneumatic actuator PAS0755
PAS0755 x 1.0
Pneumatic actuator PAS0755
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 17,5Nm
Add to Cart
04806007007 x 1.0
04806007007
Mounting bridge; Zinc plated steel; Flange 1: F03/F04mm; Flange 2: F05; Height 50mm; Mounting table for RI3030
Add to Cart
A4/457/04 x 1.0
A4/457/04
Bolt; 1.4305; Diameter 20mm; Height of the bolt 47mm; Male square 14mm; Height of the male square 13mm; Female square 9mm; Height of the female square 8mm
Add to Cart
