BA346-12-S0-A

BA346-12-S0-A

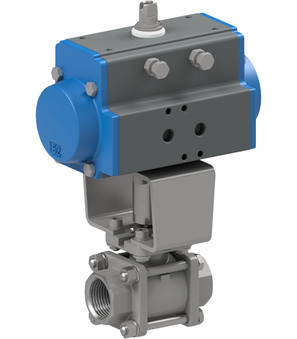

Ball valve with pneumatic actuator Series BA346-S-A; ATEX II 2 G/D c T3; Full bore; Three-parts type; Female thread; Body, Ball 1.4408; Seals PTFE/FFKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 15mm; Connection RP 1/2"; Pressure range 0...64bar; Length 65mm; Actuator PAS0525

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.883 Kg
Short Itemnumber: BA34612S0A
https://www.stasto.eu/web/image/product.template/174315/image_1920?unique=94b97ec

ball valve with pneumatic actuator series BA346-S-A; ATEX II 2 G/D c T3; three-parts type; female thread; body, ball AISI 316; seals PTFE/FFKM; single acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 15mm; connection RP 1/2"; pressure range 0...63bar; length 65mm; actuator PAS0525

443,70 € 443.7 EUR 443,70 €

price on request

  • Design

This combination does not exist.

Availability:
Contact Us

Share

Design ATEX
BA346-12-L-A
BA346-12-L-A x 1.0
BA346-12-L-A
Ball valve made of stainless steel Series BA346-L-A; ATEX II 2 G/D c T3; TA-Luft; Full bore; Three-parts type; Female thread; Body, Ball 1.4408; Seals PTFE/FFKM; Medium temperature -20...+160°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0...64bar; Length 65mm
Add to Cart
Pneumatic actuator PAS0525
PAS0525 x 1.0
Pneumatic actuator PAS0525
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 6,2Nm
