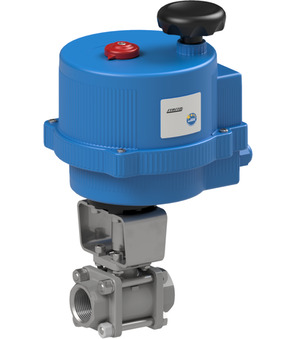

BA346-12-0L

Ball valve made of stainless steel Series BA346-L-A; ATEX II 2 G/D c T3; TA-Luft; Full bore; Three-parts type; Female thread; Body, Ball 1.4408; Seals PTFE/FFKM; Medium temperature -20...+160°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0...64bar; Length 65mm

Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 15Nm; Operating time 10s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 24VAC/DC; Protection class IP65

Mounting bracket; F03; Bolt 11-7
