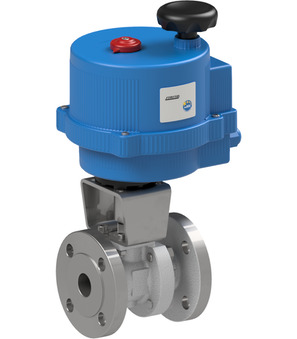

Flanged ball valve with electrical actuator BA326-50-CL

Name: Flanged ball valve with electrical actuator BA326-50-CL
Brand: STASTO
SKU: BA326-50-CL
Price: 2235.5 EUR
Availability: InStock

flanged ball valve with electrical actuator; fire-safe; TA-Luft; length according to EN558−1 R27; full bore; body, ball AISI 316; seals PTFE/MFQ; medium temperature -40...+200°C; nominal diameter 50mm; pressure range 0-40bar; flange PN40; length 150mm; operating time 27s; voltage 24VAC/DC; control signal 4...20mA/0...10V

Intrastat No.: 84818081
Country of origin: Italy
Weight: 17.04 Kg
Short Itemnumber: BA32650CL

2.235,50 € 2235.5 EUR 2.235,50 €

DN
- 50 mm
Length
- 150 mm
Flange
- PN40
Voltage
- 24VAC/DC
Pressure range
- 0...40 bar

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	50 mm
Length	150 mm
Flange	PN40
Electrical key figures
Voltage	24VAC/DC
pressure
Pressure range	0...40 bar

BA326-50-L-A x 1.0

BA326-50-L-A

Flanged ball valve; ATEX II 2 G/D c T3; Fire-safe; TA-Luft; Length According to EN558−1 R27; Full bore; Body, Ball 1.4408; Seals PTFE/MFQ; Medium temperature -40...+200°C; Nominal diameter 50mm; Pressure range 0-40bar; Flange PN40; Length 150mm

Add to Cart

VB110-H-P0S x 1.0

Electrical actuator VB110-H-P0S

Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Positioner 4-20mA/0-10V; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 100-240VAC; Protection class IP67

Add to Cart

RI3522 x 1.0
