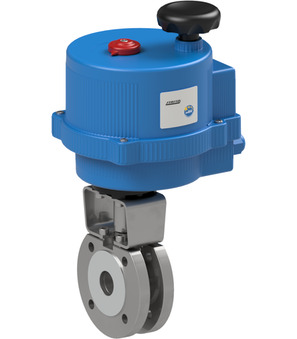

Flanged ball valve with electrical actuator BA295-40-0L

flanged ball valve with electrical actuator; flange PN16; body, ball AISI 316; seals PTFE/Carbographite; with o-ring from HNBR; medium temperature -30...+50°C; DN 40mm; pressure range 0-16bar; length 63,5mm; operating time 9s; voltage 24VAC/DC

Intrastat No.: 84818081
Country of origin:
Italy Made in Europe
Weight:
7.92 Kg
Short Itemnumber:
BA295400L
https://www.stasto.eu/web/image/product.template/221896/image_1920?unique=b71d15d

flanged ball valve with electrical actuator; flange PN16; body, ball AISI 316; seals PTFE/Carbographite; with o-ring from HNBR; medium temperature -30...+50°C; DN 40mm; pressure range 0-16bar; length 63,5mm; operating time 9s; voltage 24VAC/DC

1.200,70 € 1200.7 EUR 1.200,70 €

Not Available For Sale

excl. tax
  • DN
  • Length
  • Voltage
  • Pressure range
  • Actuator
  • Operating time
  • Brand

This combination does not exist.

Availability:
See availability

Technical specifications

Pressure range 0...16 bar
DN 40 mm
Length 63,5 mm
Operating time 9 s
Pressure range 0...16 bar
DN 40 mm
Length 63,5 mm
Operating time 9 s
Voltage 24VAC/DC
Brand STASTO
BA295-40-L x 1.0 Pcs
BA295-40-L
flanged ball valve; flange PN16, full bore; body, ball AISI 316; seals PTFE/Carbographite; with o-ring from HNBR; pressure range 0...16bar; medium temperature -30...+50°C; nominal diameter 40mm; length 63,5mm
VB060-L x 1.0 Pcs
Electrical actuator VB060-L
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-Stern 14 mm; Voltage 24VAC/DC; Protection class IP67
RI3002 x 1.0 Pcs
RI3002
Mounting bracket, F07/F05-F05, Bolt 14-10
