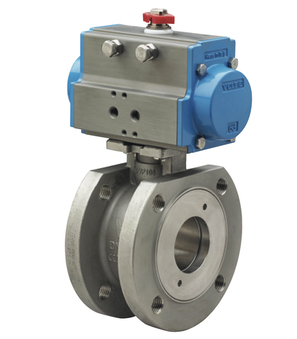

Flanged ball valve with pneumatic actuator BA282-100-S0-A

Flanged ball valve with pneumatic actuator BA282-100-S0-A

Flanged ball valve with pneumatic actuator Series BA282; ATEX II 2 G/D; Flange PN16; Body, Ball 1.4401; Seals MPTFE/PTFE/FKM; Single acting actuator ATEX II 2G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+180°C; Pressure range 0...16bar; Nominal diameter 100mm; Length 152mm; Actuator PAS1155

Intrastat No.: 84818081
Country of origin: Italy
Weight: 32.38 Kg
Short Itemnumber: BA282100S0A
https://www.stasto.eu/web/image/product.template/157178/image_1920?unique=53d3321

flanged ball valve with pneumatic actuator series BA282; ATEX II 2 G/D; flange PN16; body, ball AISI 316; seals MPTFE/PTFE/FKM; single acting actuator ATEX II 2G/D c T6; control pressure 5,5...8bar; medium temperature -20...+180°C; pressure range 0...16bar; nominal diameter 100mm; length 152mm; actuator PAS1155

2.402,40 € 2402.4 EUR 2.402,40 €

Not Available For Sale

excl. tax
  • DN
  • Length
  • Design
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16bar
DN 100 mm
Length 152 mm
Design ATEX
Documents
Data sheets, drawings and CAD files
Pressure range 0...16bar
DN 100 mm
Length 152 mm
Design ATEX

BA282-100-S0-A

Documents

3 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

2

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

2

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

2

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

2

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

2

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

2

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

2

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
Flanged ball valve BA282-100-B-A
BA282-100-B-A x 1.0 Pcs
Flanged ball valve BA282-100-B-A
Flanged ball valve Series BA282-B-A; ATEX II 2 G/D; Bare shaft; Flange PN16; Full bore; Body, Ball 1.4401; Seals MPTFE/PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+180°C; Nominal diameter 100mm; Length 152mm; Flange ISO5211 F07; Square 17mm
Pneumatic actuator PAS1155
PAS1155 x 1.0 Pcs
Pneumatic actuator PAS1155
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 71,1Nm
