BA243-38-D0

Name: BA243-38-D0
Brand: STASTO
SKU: BA243-38-D0

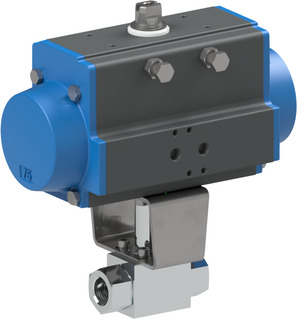

Ball valve with pneumatic actuator; Female thread; Body; Ball 1.4571/1.4404; Seals PEEK/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+100°C; G 3/8"; Nominal diameter 10mm; Pressure range 0...500bar; Length 72mm; Actuator PAD063

Intrastat No.: 84818081
Country of origin: Germany
Weight: 2.62 Kg
Short Itemnumber: BA24338D0

ball valve with pneumatic actuator; female thread; body; ball AISI 316Ti/AISI 316L; seals PEEK/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+100°C; G 3/8"; nominal diameter 10mm; pressure range 0...500bar; length 72mm; actuator PAD063

On request

This combination does not exist.

Availability:

Specifications
Spare Parts

No Specifications

BA243-38-B x 1.0

BA243-38-B

High pressure ball valve; Female thread; Body, Ball 1.4571; Seals PEEK/FKM; Medium temperature -20...+200°C; G 3/8"; Nominal diameter 10mm; Pressure range 0...500bar; Length 72mm; Flange ISO5211 F03; Square 9mm

Add to Cart

PAD063 x 1.0

Pneumatic actuator PAD063

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm

Add to Cart

04806007007 x 1.0

04806007007

Mounting bridge; Zinc plated steel; Flange 1: F03/F04mm; Flange 2: F05; Height 50mm; Mounting table for RI3030

Add to Cart

A4/223/96 x 1.0

A4/223/96

Bolt; 1.4305; Diameter 20mm; Height of the bolt 43mm; Male square 14mm; Height of the male square 15mm; Female square 9mm; Height of the female square 10mm
