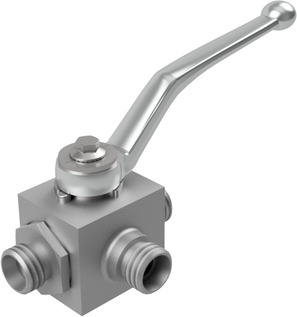

High pressure ball valve Series BA236, BA646; 3-way-type; Sealing on two sides; Pressure inlet just in front; Male thread According to ISO 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals POM/NBR; Medium temperature -20...+100°C; For liquids; Connection 16S/M24x1,5; Nominal diameter 13mm; Pressure range 0...500bar; Length 86mm; Ball L
Country of origin: Germany
Weight: 0.65 Kg
Short Itemnumber: BA23616SL
high pressure ball valve series BA236, BA646; 3-way-type; sealing on two sides; pressure inlet just in front; male thread according to ISO 8434-1 (DIN 2353); body zinc plated steel; ball steel; seals POM/NBR; medium temperature -20...+100°C; for liquids; connection 16S/M24x1,5; nominal diameter 13mm; pressure range 0...500bar; length 86mm; ball L
Technical specifications
| Pressure range | 0...500 bar |
|---|---|
| Connection | 16S/M24x1,5 |
| DN | 13 mm |
| Length | 86 mm |
| Pressure range | 0...500 bar |
| Connection | 16S/M24x1,5 |
| DN | 13 mm |
| Length | 86 mm |
| Ball | L |
| Male thread | M24x1,5 |
| Type | 16S |
BA236-16S-L
