BA235-12-CL

BA235-12-CL

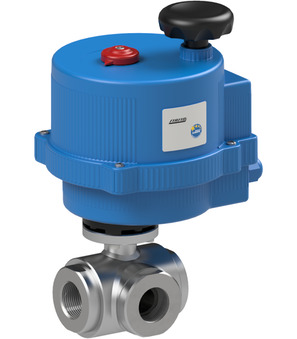

Ball valve with electrical actuator Series BA235; 3-way-type; Sealing on three ports; Body 1.4404 Polished, Ball 1.4404; Seals PTFE/EPDM-Special; Full bore; Medium temperature -45...+150°C; G 1/2"; DN 15mm; Pressure range 0…100bar; Length 82mm; Operating time 10s; Voltage 24VAC/DC; Incl. Positioner 4-20mA/0-10V; Ball L

Intrastat No.: 84818081
Country of origin: Italy
Short Itemnumber: BA23512CL
https://www.stasto.eu/web/image/product.template/178866/image_1920?unique=94b97ec

ball valve with electrical actuator series BA235; 3-way-type; sealing on three ports; body AISI 316L polished, ball AISI 316L; seals PTFE/EPDM-special; full bore; medium temperature -45...+150°C; G 1/2"; DN 15mm; pressure range 0…100bar; length 82mm; operating time 10s; voltage 24VAC/DC; incl. positioner 4-20mA/0-10V; ball L

1.199,00 € 1199.0 EUR 1.199,00 €

price on request

  • Female thread
  • DN
  • Length
  • Ball
  • Voltage
  • Pressure range
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
Contact Us

Share

dimension
Female thread G 1/2"
DN 15 mm
Length 82 mm
Designs
Ball L
Electrical key figures
Voltage 24VAC/DC
pressure
Pressure range 0...40 bar, 0...100 bar
characteristics
Actuator VB015L24
Operating time 10 s
BA235-12-B
BA235-12-B x 1.0
BA235-12-B
Ball valve made of stainless steel; With bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/EPDM-Special; Sealing on three ports; Medium temperature -45...+150°C; G 1/2"; Nominal diameter 15mm; Pressure range 0-100bar; Length 82mm; Ball L
Add to Cart
Electrical actuator VB030-L-P0S
VB030-L-P0S x 1.0
Electrical actuator VB030-L-P0S
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Positioner 4-20mA/0-10V; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 24VAC/DC; Protection class IP67
Add to Cart
04805007001 x 1.0
04805007001
Mounting bridge; Zinc plated steel; Flange 1: F03/32mm; Flange 2: F05; Height 50mm
Add to Cart
IV/00001/07 x 1.0
IV/00001/07
Bolt; 1.4305; Diameter 20mm; Height of the bolt 48mm; Male square 11mm; Height of the male square 14mm; Female square 9mm; Height of the female square 8mm
