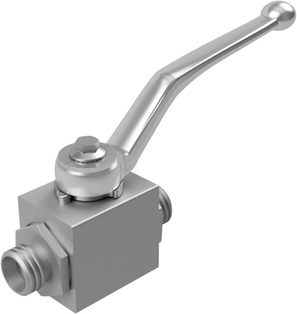

High pressure ball valve BA234-8L-L
High pressure ball valve Series BA234; Male thread According to ISO 8434-1 (DIN 2353); Body, Ball 1.4571/1.4404; Seals POM/NBR; For hydraulic liquids; Medium temperature -30...+100°C; Connection 8L/M14x1,5; Nominal diameter 6mm; Pressure range 0...500bar; Length 67mm
Intrastat No.: 84818081
Country of origin: Germany
Weight: 0.37 Kg
Short Itemnumber: BA2348LL
Country of origin: Germany
Weight: 0.37 Kg
Short Itemnumber: BA2348LL
high pressure ball valve series BA234; male thread according to ISO 8434-1 (DIN 2353); body, ball AISI 316Ti/AISI 316L; seals POM/NBR; for hydraulic liquids; medium temperature -30...+100°C; connection 8L/M14x1,5; nominal diameter 6mm; pressure range 0...500bar; length 67mm
| dimension | |
|---|---|
| Male thread | M14x1,5 |
| DN | 6 mm |
| Length | 67 mm |
| Designs | |
| Type | 8-L |
| pressure | |
| Pressure range | 0...500 bar |
No spare parts are available for this product.
