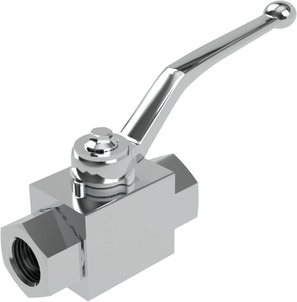

High pressure ball valve BA234-12-L-A3G
High pressure ball valve Series BA234-A3G; ATEX zone 1; Female thread; Body, Ball 1.4571/1.4404; Seals PEEK-ATEX/NBR; With erosion protection ring; Medium temperature -30...+100°C; For liquids; Incl. Inspection certificate EN-10204-3.1 For material, pressure, function and tightness; G 1/2"; Nominal diameter 13mm; Pressure range 0...500bar; Length 83mm
Intrastat No.: 84818081
Country of origin: Germany
Weight: 0.66 Kg
Short Itemnumber: BA23412LA3G
Country of origin: Germany
Weight: 0.66 Kg
Short Itemnumber: BA23412LA3G
high pressure ball valve series BA234-A3G; ATEX zone 1; female thread; body, ball AISI 316Ti/AISI 316L; seals PEEK-ATEX/NBR; with erosion protection ring; medium temperature -30...+100°C; for liquids; incl. inspection certificate EN-10204-3.1 for material, pressure, function and tightness; G 1/2"; nominal diameter 13mm; pressure range 0...500bar; length 83mm
| dimension | |
|---|---|
| Female thread | G 1/2" |
| DN | 13 mm |
| Length | 83 mm |
| design | |
| Design | ATEX |
| pressure | |
| Pressure range | 0...500 bar |
No spare parts are available for this product.
