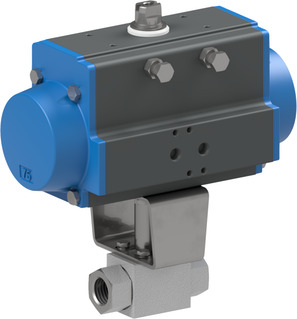

BA233-34-D0-ABS51-C001-03-C002-31-LVCV20-2

Price.

625,00 €
Ball valve with pneumatic actuator Series BA233 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Ball valves for high pressure - pneumatically operated
  5. Ball valve with pneumatic actuator Series BA233
  6. BA233-34-D0-ABS51-C001-03-C002-31-LVCV20-2
BA233-34-D0-ABS51-C001-03-C002-31-LVCV20-2
BA233-34-D0-ABS51-C001-03-C002-31-LV-2
BA233-34-D0-ABS51-C001-03-C002-31-LV-2
617,10 €
617,10 €
BA233-34-D0-ABS51-C001-22-C002-31-6
BA233-34-D0-ABS51-C001-22-C002-31-6
611,70 €
611,70 €

BA233-34-D0-ABS51-C001-03-C002-31-LVCV20-2

BA233-34-D0
Ball valve with pneumatic actuator Series BA233; Female thread; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+100°C; For liquids; G 3/4"; Nominal diameter 20mm; Pressure range 0...420bar; Length 95mm; Actuator PAD085
ABS51
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-LVCV20-2
Connector; Connector size 22mm; With integrated LED-yellow, VDR and PVC-cable (2 m); Voltage 24VAC/DC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 6.28 Kg
Short Itemnumber:BA23334D0ABS51C00103C00231LVCV202
https://www.stasto.eu/web/image/product.template/199475/image_1920?unique=94b97ec

BA233-34-D0
ball valve with pneumatic actuator series BA233; female thread; body zinc plated steel; ball steel; seals POM/NBR; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+100°C; for liquids; G 3/4"; nominal diameter 20mm; pressure range 0...420bar; length 95mm; actuator PAD085
ABS51
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-LVCV20-2
connector; connector size 22mm; with integrated LED-yellow, VDR and PVC-cable (2 m); voltage 24VAC/DC

625,00 € 625.0 EUR 625,00 €

price on request

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Valve interface Namur 1/4"
Female thread G 3/4"
DN 20 mm
Length 95 mm
Designs
Connector size 22
design
Design With integrated LED-yellow, VDR and PVC-cable (2 m)
Electrical key figures
Voltage 24VDC / 48V/50-60Hz
pressure
Pressure range 0...420 bar
characteristics
Coil C001
Actuator PAD085
