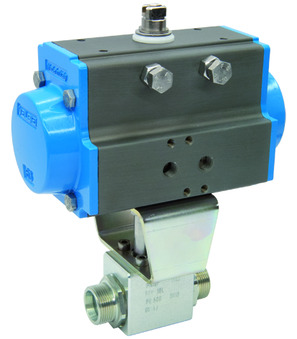

BA233-30S-D0-01

BA233-30S-D0-01

Ball valve with pneumatic actuator; Male thread According to ISO 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals POM/EPDM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+100°C; Connection 30S/M42x2; Nominal diameter 25mm; Pressure range 0...350bar; Length 120mm; Actuator PAD085

Intrastat No.: 84818081
Country of origin: Italy
Weight: 6.42 Kg
Short Itemnumber: BA23330SD001
https://www.stasto.eu/web/image/product.template/142112/image_1920?unique=6fca8dd

ball valve with pneumatic actuator; male thread according to ISO 8434-1 (DIN 2353); body zinc plated steel; ball steel; seals POM/EPDM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+100°C; connection 30S/M42x2; nominal diameter 25mm; pressure range 0...350bar; length 120mm; actuator PAD085

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Connection 30S/M42x2
Pressure range 0...350bar
Brand STASTO
Documents
Data sheets, drawings and CAD files
Connection 30S/M42x2
Pressure range 0...350bar
Brand STASTO

BA233-30S-D0-01

Documents

1 Documents

Language-independent
ZIP

CAD / 3D

1
BA233-30S-B-01 x 1.0 Pcs
BA233-30S-B-01
High pressure ball valve; Male thread according to DIN 2353; Drilled for mounting an actuator; Body Zinc plated steel; Ball Steel; Seals POM/EPDM; Medium temperature -20...+100°C; Connection 30S/M42x2; Nominal diameter 25mm; Pressure range 0...350bar; Length 120mm; Flange ISO5211 F05; Square 14mm
Pneumatic actuator PAD085
PAD085 x 1.0 Pcs
Pneumatic actuator PAD085
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 96Nm
04808007001 x 1.0 Pcs
04808007001
Mounting bridge; Zinc plated steel; F05/F07-F05; Height 60mm
A4/338/99 x 1.0 Pcs
A4/338/99
Bolt; 1.4305; Diameter 25mm; Height of the bolt 54mm; Male square 14mm; Height of the male square 15mm; Female square 14mm; Height of the female square 15mm
