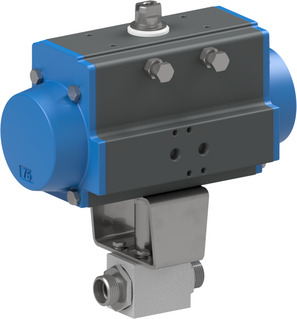

Ball valve with pneumatic actuator BA233-25S-S0

Price.

841,70 €
Ball valve with pneumatic actuator Series BA233 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Ball valves for high pressure - pneumatically operated
  5. Ball valve with pneumatic actuator Series BA233
  6. BA233-25S-S0
Ball valve with pneumatic actuator BA233-25S-S0
BA233-22L-S0-ABS53-C001-22-C002-31-LVCV20-1
BA233-22L-S0-ABS53-C001-22-C002-31-LVCV20-1
997,70 €
997,70 €
BA233-25S-S0-ABS53-C001-03-C002-31-6
BA233-25S-S0-ABS53-C001-03-C002-31-6
981,10 €
981,10 €

Ball valve with pneumatic actuator BA233-25S-S0

Ball valve with pneumatic actuator Series BA233; Male thread According to ISO 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals POM/NBR; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+100°C; For liquids; Connection 25S/M36x2; Nominal diameter 20mm; Pressure range 0...420bar; Length 109mm; Actuator PAS1255

Intrastat No.: 84818081
Country of origin: Italy
Weight: 15.98 Kg
Short Itemnumber:BA23325SS0
https://www.stasto.eu/web/image/product.template/139726/image_1920?unique=bbc91d7

ball valve with pneumatic actuator series BA233; male thread according to ISO 8434-1 (DIN 2353); body zinc plated steel; ball steel; seals POM/NBR; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+100°C; for liquids; connection 25S/M36x2; nominal diameter 20mm; pressure range 0...420bar; length 109mm; actuator PAS1255

841,70 € 841.7 EUR 841,70 €

price on request

  • Male thread
  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Type
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Male thread M36x2
DN 20 mm
Length 109 mm
Designs
Type 25S
pressure
Pressure range 0...420 bar
characteristics
Actuator PAS1255

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Ball valve with pneumatic actuator Series BA233_EN.pdf
Download
CAD / 3D
1
CADSTEP_BA23325SS0.stp
Download

ZIP
Datové listy
1
Datový list_kulový kohout s otočným pneumatickým pohonem série BA233_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Kugleventil med pneumatisk drejedrev Serie BA233_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Kugelhahn mit Druckluftdrehantrieb Serie BA233_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Σφαιρική βάνα με πνευματικό περιστροφικό ενεργοποιητή Σειρά BA233_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de bola con actuador neumático rotativo Serie BA233_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Palloventtiili paineilmatoimisella kääntötoimilaitteella Sarja BA233_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne à boisseau sphérique avec actionneur pneumatique rotatif Série BA233_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Kuglasti ventil s pneumatskim rotacijskim pogonom Serija BA233_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_pneumatikus forgatóhengerrel működtetett gömbcsap sorozat BA233_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Valvola a sfera con attuatore pneumatico rotativo Serie BA233_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Kuleventil med pneumatisk roterende aktuator Serie BA233_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Kogelkraan met pneumatische draaiaandrijving Serie BA233_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy z napędem pneumatycznym Seria BA233_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Robinet cu bilă cu actuator rotativ pneumatic serie BA233_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Krogelna pipa s pnevmatskim rotacijskim pogonom serija BA233_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa pneumatskim aktuatorom serije BA233_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Kulventil med pneumatiskt vriddon Serie BA233_SV.pdf
Download
BA233-25S-B x 1.0
High pressure ball valve BA233-25S-B
High pressure ball valve Series BA233; Male thread according to DIN 2353; Drilled for mounting an actuator; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Medium temperature -20...+100°C; Connection 25S/M36x2; Nominal diameter 20mm; Pressure range 0...420bar; Length 109mm; Flange ISO5211 F05; Square 14mm
Add to Cart
Pneumatic actuator PAS1255
PAS1255 x 1.0
Pneumatic actuator PAS1255
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 88,1Nm
Add to Cart
A4/338/99 x 1.0
A4/338/99
Bolt; 1.4305; Diameter 25mm; Height of the bolt 54mm; Male square 14mm; Height of the male square 15mm; Female square 14mm; Height of the female square 15mm
Add to Cart
