BA233-18L-D0-ABS51-C001-03-C002-31-LVCV20-2

Price.

552,62 €
Ball valve with pneumatic actuator Series BA233 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Ball valves for high pressure - pneumatically operated
  5. Ball valve with pneumatic actuator Series BA233
  6. BA233-18L-D0-ABS51-C001-03-C002-31-LVCV20-2

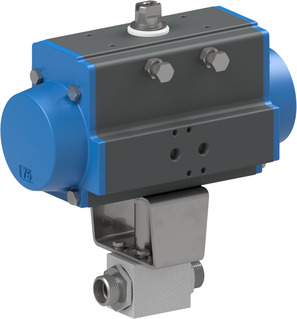

BA233-18L-D0-ABS51-C001-03-C002-31-LVCV20-2
BA233-18L-D0-ABS51-C001-03-C002-31-LV-2
BA233-18L-D0-ABS51-C001-03-C002-31-LV-2
544,86 €
544,86 €
BA233-18L-D0-ABS51-C001-22-C002-31-6
BA233-18L-D0-ABS51-C001-22-C002-31-6
539,83 €
539,83 €

BA233-18L-D0-ABS51-C001-03-C002-31-LVCV20-2

BA233-18L-D0
Ball valve with pneumatic actuator Series BA233; Male thread According to ISO 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals POM/NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+100°C; For liquids; Connection 18L/M26x1,5; Nominal diameter 13mm; Pressure range 0...500bar; Length 82mm; Actuator PAD075
ABS51
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-LVCV20-2
Connector; Connector size 22mm; mit eingebauter LED-gelb, VDR und PVC-Kabel (2 m); Voltage 24VAC/DC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.1 Kg
Short Itemnumber:BA23318LD0ABS51C00103C00231LVCV202
https://www.stasto.eu/web/image/product.template/199700/image_1920?unique=c371f17

BA233-18L-D0
ball valve with pneumatic actuator series BA233; male thread according to ISO 8434-1 (DIN 2353); body zinc plated steel; ball steel; seals POM/NBR; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+100°C; for liquids; connection 18L/M26x1,5; nominal diameter 13mm; pressure range 0...500bar; length 82mm; actuator PAD075
ABS51
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-LVCV20-2
connector; connector size 22mm; mit eingebauter LED-gelb, VDR und PVC-Kabel (2 m); voltage 24VAC/DC

552,62 € 552.62 EUR 552,62 €

price on request

  • Male thread
  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Type
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Male thread M26x1,5
Valve interface Namur 1/4"
DN 13 mm
Length 82 mm
Designs
Connector size 22
Type 18L
design
Design With integrated LED-yellow, VDR and PVC-cable (2 m)
Electrical key figures
Voltage 24VDC / 48V/50-60Hz
pressure
Pressure range 0...500 bar
characteristics
Coil C001
Actuator PAD075
