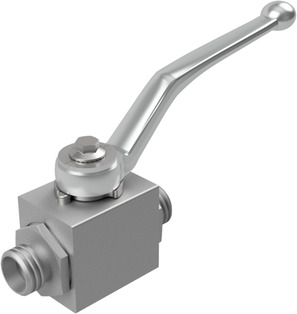

High pressure ball valve Series BA233; Male thread according to ISO 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals POM/NBR; Medium temperature -20...+100°C; For liquids; Connection 15L/M22x1,5; Nominal diameter 13mm; Pressure range 0...500bar; Length 82mm
Country of origin: Germany
Weight: 0.61 Kg
Short Itemnumber: BA23315LL
high pressure ball valve series BA233; male thread according to ISO 8434-1 (DIN 2353); body zinc plated steel; ball steel; seals POM/NBR; medium temperature -20...+100°C; for liquids; connection 15L/M22x1,5; nominal diameter 13mm; pressure range 0...500bar; length 82mm
Technical specifications
| Pressure range | 0...500 bar |
|---|---|
| Connection | 15L/M22x1,5 |
| DN | 13 mm |
| Length | 82 mm |
| Pressure range | 0...500 bar |
| Connection | 15L/M22x1,5 |
| DN | 13 mm |
| Length | 82 mm |
| Male thread | M22x1,5 |
| Type | 15L |
BA233-15L-L
