BA233-114-D0-EB0X01

Price.

583,84 €
Ball valve with pneumatic actuator Series BA233 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Ball valves for high pressure - pneumatically operated
  5. Ball valve with pneumatic actuator Series BA233
  6. BA233-114-D0-EB0X01

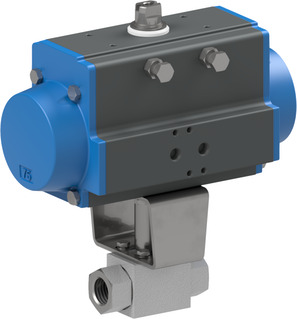

BA233-114-D0-EB0X01
BA233-114-D0-ABS51-C001-22-C002-31-LVCV20-1
BA233-114-D0-ABS51-C001-22-C002-31-LVCV20-1
645,89 €
645,89 €
Ball valve with pneumatic actuator BA233-112-D0
Ball valve with pneumatic actuator BA233-112-D0
496,02 €
496,02 €

BA233-114-D0-EB0X01

BA233-114-D0
Ball valve with pneumatic actuator Series BA233; Female thread; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+100°C; For liquids; G 11/4"; Nominal diameter 25mm; Pressure range 0...350bar; Length 120mm; Actuator PAD085
EB0X01
Mounted limit switch box; IP65; 2 Micro switches; Suitable for Actuators PAD/PAS052-270; Switching capacity 4A/250VAC-1A/24VDC; Switch type Crouzet 831613; Contact material Silver-nickel; Material of case Plastic

Intrastat No.: 84818081
Country of origin: Italy
Weight: 6.968 Kg
Short Itemnumber:BA233114D0EB0X01
https://www.stasto.eu/web/image/product.template/182586/image_1920?unique=823629c

BA233-114-D0
ball valve with pneumatic actuator series BA233; female thread; body zinc plated steel; ball steel; seals POM/NBR; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+100°C; for liquids; G 11/4"; nominal diameter 25mm; pressure range 0...350bar; length 120mm; actuator PAD085
EB0X01
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831613; contact material silver-nickel; material of case plastic

583,84 € 583.84 EUR 583,84 €

price on request

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Attachment interface VDI/VDE 3845 80x30x20
Attachment interface 2 VDI/VDE 3845 80x30x30
Female thread G 1 1/4"
DN 25 mm
Length 120 mm
Designs
Switch type Crouzet 831613
Electrical key figures
Switching capacity 4A/250VAC-1A/24VDC
pressure
Pressure range 0...350 bar
materials
Contact material Silver-nickel
Material of case Plastic
characteristics
Actuator PAD085
