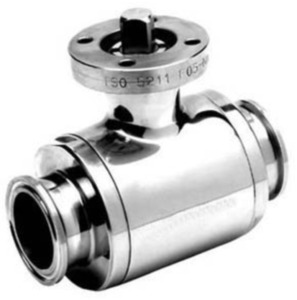

Ball valve made of stainless steel; Full bore; Body And Ball 1.4404; Seals MPTFE/FKM Without dead space; Medium temperature -20...+160°C; Tri-Clamp connection 2" DIN 32676 TAB.2 Row A; Welding ends Nominal diameter 50mm; Pressure range 0…40bar; Length 136mm; Flange ISO5211 F07; Square 17mm; Heating jacket; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness; FDA-certification
ball valve made of stainless steel; full bore; body, ball AISI 316L; seals PTFE/FKM; medium temperature -20...+160°C; Tri-Clamp connection 2"; nominal diameter 50mm; pressure range 0-25bar; length 136mm; flange ISO5211 F05; square 14mm
Technical specifications
| Pressure range | 0…40bar |
|---|---|
| Brand | STASTO |
| Pressure range | 0…40bar |
| Brand | STASTO |
