BA215-125-D0

Name: BA215-125-D0
Brand: STASTO
SKU: BA215-125-D0

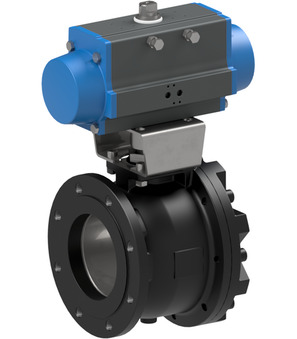

Flanged ball valve with pneumatic actuator; Flange PN40; Body Steel; Ball 1.4301; Seals Fibre-glass-reinforced PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Pressure range 0...40bar; Nominal diameter 125mm; Length 196mm; Actuator PAD115

Intrastat No.: 84818081
Country of origin: Italy
Weight: 11.06 Kg
Short Itemnumber: BA215125D0

flanged ball valve with pneumatic actuator; flange PN40; body steel; ball AISI 304; seals fibre-glass-reinforced PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+160°C; pressure range 0...40bar; nominal diameter 125mm; length 196mm; actuator PAD115

On request

This combination does not exist.

Availability:

Specifications
Spare Parts

No Specifications

BA215-125-L x 1.0

BA215-125-L

Flanged ball valve; Flange PN40, Full bore; Body Steel; Ball 1.4301; Seals Fibre-glass-reinforced PTFE/FKM; Pressure range 0...40bar; Medium temperature -10...+160°C; Nominal diameter 125mm; Length 196mm

Add to Cart

PAD115 x 1.0

Pneumatic actuator PAD115

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 249Nm

Add to Cart

RI3036 x 1.0
