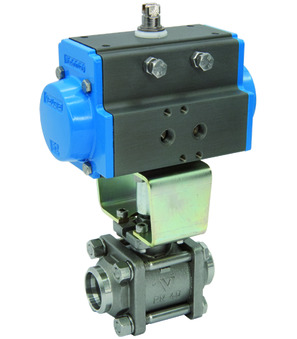

Ball valve with pneumatic actuator BA175-40-S0-A

Name: Ball valve with pneumatic actuator BA175-40-S0-A
Brand: STASTO
SKU: BA175-40-S0-A

Ball valve with pneumatic actuator Series BA175-S; ATEX II 2 G/D; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FFKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 40mm; Pressure range 0-25bar; Length 116mm; Actuator PAS0855

Intrastat No.: 84818081
Country of origin: Italy
Weight: 7.86 Kg
Short Itemnumber: BA17540S0A

ball valve with pneumatic actuator series BA175-S; ATEX II 2 G/D; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FFKM; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 40mm; pressure range 0-25bar; length 116mm; actuator PAS0855

On request

DN
- 40 mm
Length
- 116 mm
Design
- ATEX
Pressure range
- 0...25 bar
Actuator
- PAS0855

This combination does not exist.

Availability:

Specifications
Spare Parts

dimension
DN	40 mm
Length	116 mm
design
Design	ATEX
pressure
Pressure range	0...25 bar
characteristics
Actuator	PAS0855

BA175-40-L x 1.0

Ball valve made of stainless steel BA175-40-L

Ball valve made of stainless steel Series BA175-L; ATEX II 2 G/D; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FFKM; Medium temperature -20...+160°C; Fire-safe/ATEX-Antistatic design; Nominal diameter 40mm; Pressure range 0-25bar; Length 116mm

Add to Cart

PAS0855 x 1.0

Pneumatic actuator PAS0855

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm

Add to Cart

RI3034 x 1.0
