STASTO Allgemeine Preisliste (EUR)
Other materiales - A03 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Other materiales - A03
  6. BA161-18L-D0

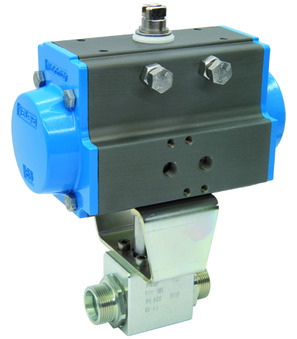

BA161-18L-D0

BA161-18L-D0

Ball valve with pneumatic actuator; Male thread According to DIN 2353; Body Zinc plated steel; Ball Steel; Seals POM/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Connection 18L/M26x1,5; Nominal diameter 15mm; Pressure range 0-500bar; Length 83mm; Actuator PAD063

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.68 Kg
Short Itemnumber: BA16118LD0
https://www.stasto.eu/web/image/product.template/126034/image_1920?unique=f96ddcc

ball valve with pneumatic actuator; male thread according to DIN 2353; body zinc plated steel; ball steel; seals POM/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+100°C; connection 18L/M26x1,5; nominal diameter 15mm; pressure range 0-500bar; length 83mm; actuator PAD063

999.999,00 € 999999.0 EUR 999.999,00 €

On request

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications

    Data sheets, Instructions, 3D-files and Certificates...

    In your language
    ZIP
    Data Sheets
    1
    Data sheet_BA161-18L-D0_EN.pdf
    Download

    ZIP
    Datové listy
    1
    Datový list_BA161-18L-D0_CS.pdf
    Download

    ZIP
    Datenblätter
    1
    Datenblatt_BA161-18L-D0_DE.pdf
    Download

    ZIP
    Adatlapok
    1
    Adatlap_BA161-18L-D0_HU.pdf
    Download

    ZIP
    Karty katalogowe
    1
    Arkusz danych_BA161-18L-D0_PL.pdf
    Download

    ZIP
    Podatkovni listi
    1
    Podatkovni list_BA161-18L-D0_SL.pdf
    Download

    ZIP
    Data Sheets
    1
    Tehnički list_BA161-18L-D0_SRLATIN.pdf
    Download
    BA161-18L-B x 1.0
    BA161-18L-B
    High pressure ball valve; Male thread According to DIN 2353; Body Zinc plated steel; Ball Steel; Seals POM/FKM; Medium temperature -10...+100°C; Connection 18L/M26x1,5; Nominal diameter 16mm; Pressure range 0-500bar; Length 83mm
    Add to Cart
    Pneumatic actuator PAD063
    PAD063 x 1.0
    Pneumatic actuator PAD063
    Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm
    Add to Cart
    04805007001 x 1.0
    04805007001
    Mounting bridge; Zinc plated steel; Flange 1: F03/32mm; Flange 2: F05; Height 50mm
    Add to Cart
    A4/459/04 x 1.0
    A4/459/04
    Bolt; 1.4305; Diameter 20mm; Height of the bolt 48mm; Male square 14mm; Height of the male square 15mm; Female square 12mm; Height of the female square 12mm
    Add to Cart
