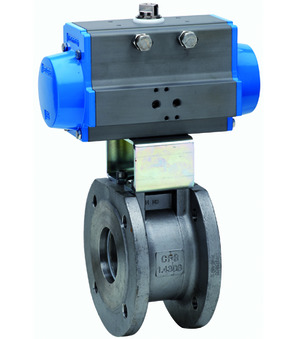

Flanged ball valve with pneumatic actuator BA160-80-D0-A

Name: Flanged ball valve with pneumatic actuator BA160-80-D0-A
Brand: STASTO
SKU: BA160-80-D0-A

Flanged ball valve with pneumatic actuator Series BA160-D0-A; ATEX II 2 G/D; Flange PN16; Body, Ball 1.4301; Seals PTFE; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Also suitable for solvents; Nominal diameter 80mm; Length 122mm; Actuator PAD115

Intrastat No.: 84818081
Country of origin: Italy
Weight: 23.89 Kg
Short Itemnumber: BA16080D0A

flanged ball valve with pneumatic actuator series BA160-D0-A; ATEX II 2 G/D; flange PN16; body, ball AISI 304; seals PTFE; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; also suitable for solvents; nominal diameter 80mm; length 122mm; actuator PAD115

On request

DN
- 80 mm
Length
- 122 mm
Design
- ATEX
Actuator
- PAD115

This combination does not exist.

Availability:

Specifications
Spare Parts

dimension
DN	80 mm
Length	122 mm
design
Design	ATEX
characteristics
Actuator	PAD115

BA160-80-L x 1.0

Flanged ball valve BA160-80-L

Flanged ball valve Series BA160-L; ATEX II 2 G/D; Flange PN16, Full bore; Body, Ball 1.4301; Seals PTFE; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 80mm; Length 122mm

Add to Cart

PAD115 x 1.0

Pneumatic actuator PAD115

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 249Nm

Add to Cart

RI3010 x 1.0
