Flanged ball valve with pneumatic actuator Series BA160-S0-A Store

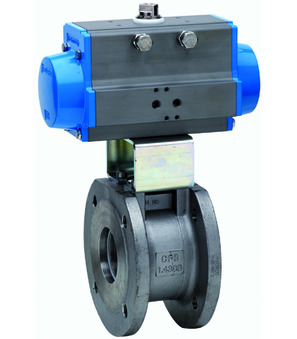

Flanged ball valve with pneumatic actuator BA160-50-S0-A

Name: Flanged ball valve with pneumatic actuator BA160-50-S0-A
Brand: STASTO
SKU: BA160-50-S0-A

Flanged ball valve with pneumatic actuator Series BA160-S0-A; ATEX II 2 G/D; Flange PN16; Body, Ball 1.4301; Seals PTFE; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Also suitable for solvents; Nominal diameter 50mm; Length 82mm; Actuator PAS1255

Intrastat No.: 84818081
Country of origin: Italy
Weight: 20.74 Kg
Short Itemnumber: BA16050S0A

flanged ball valve with pneumatic actuator series BA160-S0-A; ATEX II 2 G/D; flange PN16; body, ball AISI 304; seals PTFE; single acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; also suitable for solvents; nominal diameter 50mm; length 82mm; actuator PAS1255

On request

DN
- 50 mm
Length
- 82 mm
Design
- ATEX
Actuator
- PAS1255

This combination does not exist.

Availability:

Specifications
Spare Parts

dimension
DN	50 mm
Length	82 mm
design
Design	ATEX
characteristics
Actuator	PAS1255

BA160-50-L x 1.0

Flanged ball valve BA160-50-L

Flanged ball valve Series BA160-L; ATEX II 2 G/D; Flange PN16, Full bore; Body, Ball 1.4301; Seals PTFE; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 50mm; Length 82mm

Add to Cart

PAS1255 x 1.0

Pneumatic actuator PAS1255

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 88,1Nm

Add to Cart

RI3009 x 1.0
