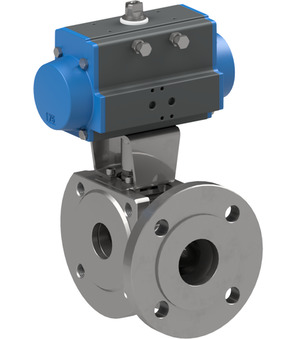

Flanged ball valve with pneumatic actuator BA155-20-S0-A

Name: Flanged ball valve with pneumatic actuator BA155-20-S0-A
Brand: STASTO
SKU: BA155-20-S0-A
Price: 1021.1 EUR
Availability: InStock

Flanged ball valve with pneumatic actuator Series BA155-S0-A; ATEX II 2 G/D; 3-way-type; Sealing on two sides; Pressure inlet just in front; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Reduced bore; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 20mm; DN ball 15mm; Length 40mm; Actuator PAS0635; Ball L

Intrastat No.: 84818081
Country of origin: Italy
Weight: 5.18 Kg
Short Itemnumber: BA15520S0A

flanged ball valve with pneumatic actuator series BA155-S0-A; ATEX II 2 G/D; 3-way-type; sealing on two sides; pressure inlet just in front; flange PN16; body, ball AISI 316; seals PTFE/FKM; reduced bore; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 20mm; DN ball 15mm; length 40mm; actuator PAS0635; ball L

1.021,10 € 1021.1 EUR 1.021,10 €

excl. tax

DN
- 20 mm
Length
- 40 mm
DN ball
- 15 mm
Ball
- L
Design
- ATEX
Actuator
- PAS0635
Brand
- STASTO

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0...16bar
DN	20 mm
DN ball	15 mm
Length	40 mm

All specifications (7)

Specifications
Spare Parts

Pressure range	0...16bar
DN	20 mm
DN ball	15 mm
Length	40 mm
Ball	L
Design	ATEX
Brand	STASTO

BA155-20-L-A x 1.0 Pcs

BA155-20-L-A

Flanged ball valve Series BA155-L-A; ATEX II 2G Ex h IIC T6...T1 Gb / II 2D Ex h IIIC T85°C...T450°C Db; 3-way-type; Sealing on two sides; Pressure inlet just in front; Reduced bore; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 20mm; DN ball 15mm; Length 40mm; Ball L

PAS0635 x 1.0 Pcs

Pneumatic actuator PAS0635

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 10,6Nm

RI3014 x 1.0 Pcs
