BA152-12-D0-AB

Name: BA152-12-D0-AB
Brand: STASTO
SKU: BA152-12-D0-AB
Price: 313.5 EUR
Availability: InStock

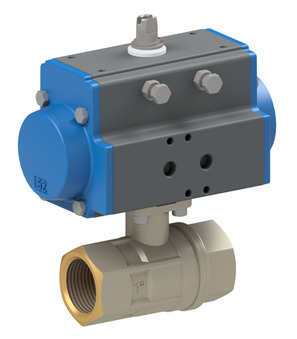

Ball valve with pneumatic actuator; Body, Ball Brass; Seals PTFE/FKM/EPDM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0-40bar; Length 67mm; Actuator PAD052; ATEX zone 1 and 21

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.423 Kg
Short Itemnumber: BA15212D0AB

ball valve with pneumatic actuator; body, ball brass; seals PTFE/FKM/EPDM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1/2"; nominal diameter 15mm; pressure range 0-40bar; length 67mm; actuator PAD052; ATEX zone 1 and 21

313,50 € 313.5 EUR 313,50 €

Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

Design

ATEX

2530-1/2"-A x 1.0

2530-1/2"-A

Ball valve made of brass; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; Without hand lever; Connection G 1/2"; Nominal diameter 15mm; Pressure range 0-40bar; Length 67mm; ATEX

Add to Cart

VK1109 x 1.0

Square adapter 11X9-10-Stahl

Square adapter Series VK; 11X9; Length 10mm; Material Stahl

Add to Cart

PAD052 x 1.0

Pneumatic actuator PAD052

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm

Add to Cart
