Ball valve with pneumatic actuator Series BA137 Store

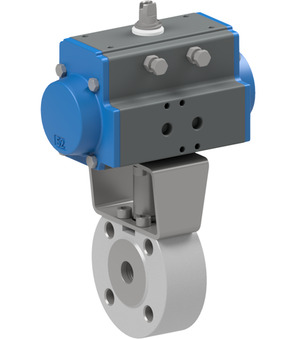

Ball valve with pneumatic actuator BA137-65-D0-A

Name: Ball valve with pneumatic actuator BA137-65-D0-A
Brand: STASTO
SKU: BA137-65-D0-A
Price: 1370.2 EUR
Availability: InStock

Ball valve with pneumatic actuator Series BA137; ATEX II 2 G/D; Flange PN16, Full bore; Body, Ball 1.4401; Seals PTFE/FKM; Pressure range 0...16bar; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 65mm; Length 103mm; Actuator PAD085

Intrastat No.: 84818081
Country of origin: Italy
Weight: 15.33 Kg
Short Itemnumber:BA13765D0A

ball valve with pneumatic actuator series BA137; ATEX II 2 G/D; flange PN16, full bore; body, ball AISI 316; seals PTFE/FKM; pressure range 0...16bar; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 65mm; length 103mm; actuator PAD085

1.370,20 € 1370.2 EUR 1.370,20 €

DN
- 65 mm
Length
- 103 mm
Design
- ATEX
Actuator
- PAD085

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	65 mm
Length	103 mm
design
Design	ATEX
characteristics
Actuator	PAD085

BA049-65-L-A x 1.0

Flanged ball valve BA049-65-L-A

Flanged ball valve Series BA049-A; ATEX II 2 G/D; Flange PN16, Full bore; Body, Ball 1.4401; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 65mm; Length 103mm

Add to Cart

PAD085 x 1.0

Pneumatic actuator PAD085

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 96Nm

Add to Cart

RI3003 x 1.0
