Ball valve with pneumatic actuator Series BA137 Store

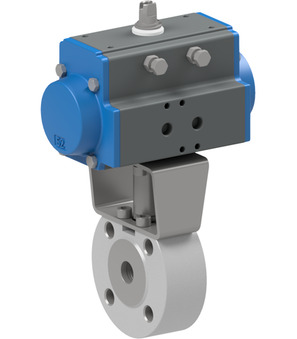

Ball valve with pneumatic actuator BA137-40-D0-A

Name: Ball valve with pneumatic actuator BA137-40-D0-A
Brand: STASTO
SKU: BA137-40-D0-A

Ball valve with pneumatic actuator Series BA137; ATEX II 2 G/D; Flange PN16, Full bore; Body, Ball 1.4401; Seals PTFE/FKM; Pressure range 0...16bar; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 40mm; Length 63,5mm; Actuator PAD063

Intrastat No.: 84818081
Country of origin: Italy
Weight: 6.48 Kg
Short Itemnumber: BA13740D0A

ball valve with pneumatic actuator series BA137; ATEX II 2 G/D; flange PN16, full bore; body, ball AISI 316; seals PTFE/FKM; pressure range 0...16bar; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 40mm; length 63,5mm; actuator PAD063

On request

DN
- 40 mm
Length
- 63,5 mm
Design
- ATEX
Actuator
- PAD063

This combination does not exist.

Availability:

Specifications
Spare Parts

dimension
DN	40 mm
Length	63,5 mm
design
Design	ATEX
characteristics
Actuator	PAD063

BA049-40-L-A x 1.0

Flanged ball valve BA049-40-L-A

Flanged ball valve Series BA049-A; ATEX II 2 G/D; Flange PN16, Full bore; Body, Ball 1.4401; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 40mm; Length 63,5mm

Add to Cart

PAD063 x 1.0

Pneumatic actuator PAD063

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm

Add to Cart

RI3002 x 1.0
