Ball valve with pneumatic actuator Series BA137 Store

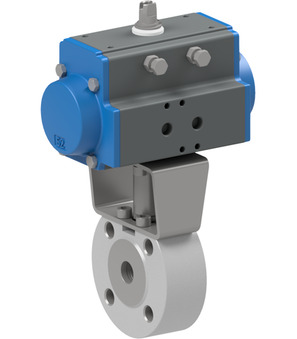

Ball valve with pneumatic actuator BA137-15-D0-A

Name: Ball valve with pneumatic actuator BA137-15-D0-A
Brand: STASTO
SKU: BA137-15-D0-A
Price: 530.4 EUR
Availability: InStock

Ball valve with pneumatic actuator Series BA137; ATEX II 2 G/D; Flange PN16, Full bore; Body, Ball 1.4401; Seals PTFE/FKM; Pressure range 0...16bar; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 15mm; Length 35mm; Actuator PAD052

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.783 Kg
Short Itemnumber: BA13715D0A

ball valve with pneumatic actuator series BA137; ATEX II 2 G/D; flange PN16, full bore; body, ball AISI 316; seals PTFE/FKM; pressure range 0...16bar; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 15mm; length 35mm; actuator PAD052

530,40 € 530.4 EUR 530,40 €

DN
- 15 mm
Length
- 35 mm
Design
- ATEX
Actuator
- PAD052

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	15 mm
Length	35 mm
design
Design	ATEX
characteristics
Actuator	PAD052

BA049-15-L-A x 1.0

Flanged ball valve BA049-15-L-A

Flanged ball valve Series BA049-A; ATEX II 2 G/D; Flange PN16, Full bore; Body, Ball 1.4401; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 15mm; Length 35mm

Add to Cart

PAD052 x 1.0

Pneumatic actuator PAD052

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm

Add to Cart

RI3012 x 1.0
