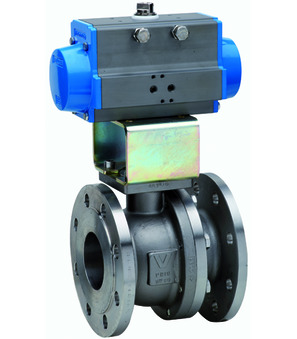

Flanged ball valve with pneumatic actuator BA132-150-S0-A

Name: Flanged ball valve with pneumatic actuator BA132-150-S0-A
SKU: BA132-150-S0-A
Price: 11190.1 EUR
Availability: InStock

Flanged ball valve with pneumatic actuator Series BA132; Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1R27; Body 1.4408; Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; ATEX; Nominal diameter 150mm; Pressure range 0...40bar; Flange PN40; Length 350mm; Actuator PAS2707

Intrastat No.: 84818081
Country of origin: Italy
Weight: 187.7 Kg
Short Itemnumber: BA132150S0A

flanged ball valve with pneumatic actuator series BA132; Fire-Safe/Antistatik according to ATEX/TA−Luft; length according to EN558−1R27; body AISI 316; ball AISI 316; seals PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; ATEX; nominal diameter 150mm; pressure range 0...40bar; flange PN40; length 350mm; actuator PAS2707

11.190,10 € 11190.1 EUR 11.190,10 €

excl. tax

DN
- 150 mm
Length
- 350 mm
Flange
- PN40
Design
- ATEX
Pressure range
- 0...40 bar
Actuator
- PAS2707

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0...40 bar
DN	150 mm
Flange	PN40
Length	350 mm

All specifications (5)

Spezifikationen
Spare Parts

Pressure range	0...40 bar
DN	150 mm
Flange	PN40
Length	350 mm
Design	ATEX

BA132-150-LLD-A x 1.0 Pcs

Flanged ball valve BA132-150-LLD-A

Flanged ball valve Series BA132; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body, Ball 1.4408; Seals RPTFE/PTFE/Graphoil/FKM; Medium temperature -20...+160°C; With locking device; Nominal diameter 150mm; Pressure range 0-40bar; Flange PN40; Length 350mm

PAS2707 x 1.0 Pcs

Pneumatic actuator PAS2707

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 270mm; Flange ISO5211 F16; Female square 46mm; Torque at 5,5bar 1076Nm

RI3753 x 1.0 Pcs
