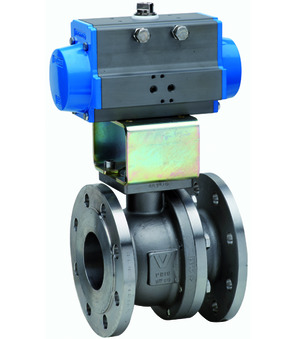

Flanged ball valve with pneumatic actuator BA132-100-S0-A

Name: Flanged ball valve with pneumatic actuator BA132-100-S0-A
Brand: STASTO
SKU: BA132-100-S0-A
Price: 4297.1 EUR
Availability: InStock

Flanged ball valve with pneumatic actuator Series BA132; ATEX II 2 G/D: Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1R27; Body, Ball 1.4408; Seals fibre-glass-reinforced PTFE/FKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 100mm; Pressure range 0...40bar; Flange PN40; Length 190mm; Actuator PAS1805

Intrastat No.: 84818081
Country of origin: Italy
Weight: 71.83 Kg
Short Itemnumber: BA132100S0A

flanged ball valve with pneumatic actuator series BA132; ATEX II 2 G/D: Fire-Safe/Antistatik according to ATEX/TA−Luft; length according to EN558−1R27; body, ball AISI 316; seals fibre-glass-reinforced PTFE/FKM; single acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 100mm; pressure range 0...40bar; flange PN40; length 190mm; actuator PAS1805

4.297,10 € 4297.1 EUR 4.297,10 €

DN
- 100 mm
Length
- 190 mm
Flange
- PN40
Design
- ATEX
Pressure range
- 0...40 bar
Actuator
- PAS1805

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	100 mm
Length	190 mm
Flange	PN40
design
Design	ATEX
pressure
Pressure range	0...40 bar
characteristics
Actuator	PAS1805

760040-100 x 1.0

760040-100

Ball valve, flanged PN40, DN100 body 1.4408, ball 1.4401, seal PTFE/FKM, Fire Safe/ATEX antistatic

Add to Cart

PAS1805 x 1.0

Pneumatic actuator PAS1805

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 180mm; Flange ISO5211 F10/F14; Female square 36mm; Torque at 5,5bar 262Nm

Add to Cart

RI3997 x 1.0
