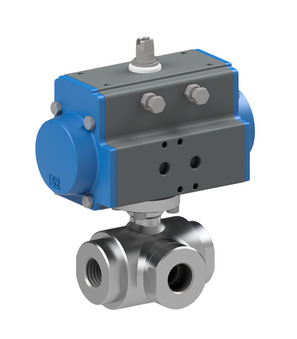

BA119-12-D0

BA119-12-D0

Ball valve with pneumatic actuator; 3-way-type; Sealing on four ports; Body, Ball 1.4401; Seals PTFE/EPDM-Perox; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -45...+160°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0-40bar; Length 82mm; Actuator PAD052; Ball T

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.243 Kg
Short Itemnumber: BA11912D0
https://www.stasto.eu/web/image/product.template/118767/image_1920?unique=3970b0b

ball valve with pneumatic actuator; 3-way-type; sealing on four ports; body, ball AISI 316; seals PTFE/EPDM-Perox; double acting actuator; control pressure 5,5...8bar; medium temperature -45...+160°C; RP 1/2"; nominal diameter 15mm; pressure range 0-40bar; length 82mm; actuator PAD052; ball T

541,90 € 541.9 EUR 541,90 €

price on request

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    Ball valve made of stainless steel BA119-12-B
    BA119-12-B x 1.0
    Ball valve made of stainless steel BA119-12-B
    Ball valve made of stainless steel Series BA119, BA235; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/EPDM-Special; Sealing on three ports; Medium temperature -45...+150°C; G 1/2"; Nominal diameter 15mm; Pressure range 0…100bar; Length 82mm; Ball T; Flange ISO5211 F03; Square 9mm
    Add to Cart
    Pneumatic actuator PAD052
    PAD052 x 1.0
    Pneumatic actuator PAD052
    Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm
