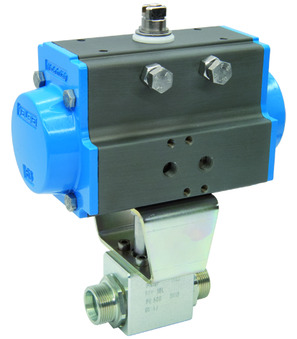

Ball valve with pneumatic actuator BA118-18L-D0

Ball valve with pneumatic actuator BA118-18L-D0

Ball valve with pneumatic actuator Series BA118-D0; Male thread According to DIN 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals PEEK/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Connection 18L/M26x1,5; Nominal diameter 15mm; Pressure range 0...500bar; Length 83mm; Actuator PAD063

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.67 Kg
Short Itemnumber: BA11818LD0
https://www.stasto.eu/web/image/product.template/126062/image_1920?unique=f96ddcc

ball valve with pneumatic actuator series BA118-D0; male thread according to DIN 8434-1 (DIN 2353); body zinc plated steel; ball steel; seals PEEK/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+160°C; connection 18L/M26x1,5; nominal diameter 15mm; pressure range 0...500bar; length 83mm; actuator PAD063

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • Connection
  • DN
  • Length
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us

Share

dimension
Connection 18L/M26x1,5
DN 15 mm
Length 83 mm
pressure
Pressure range 0...500 bar
characteristics
Actuator PAD063
BA118-18L-B x 1.0
BA118-18L-B
High pressure ball valve; Male thread According to DIN 2353; Body Zinc plated steel; Ball Steel; Seals PEEK/FKM; Medium temperature -10...+130°C; Connection 18L/M26x1,5; Nominal diameter 16mm; Pressure range 0-500bar; Length 83mm
Add to Cart
Pneumatic actuator PAD063
PAD063 x 1.0
Pneumatic actuator PAD063
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm
Add to Cart
04805007001 x 1.0
04805007001
Mounting bridge; Zinc plated steel; Flange 1: F03/32mm; Flange 2: F05; Height 50mm
Add to Cart
A4/459/04 x 1.0
A4/459/04
Bolt; 1.4305; Diameter 20mm; Height of the bolt 48mm; Male square 14mm; Height of the male square 15mm; Female square 12mm; Height of the female square 12mm
