Ball valve with pneumatic actuator BA091-50-S0

Price.

913,70 €
STASTO Allgemeine Preisliste (EUR)
Ball valve with pneumatic actuator Series BA091-S0 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Ball valve with pneumatic actuator Series BA091-S0
  6. BA091-50-S0

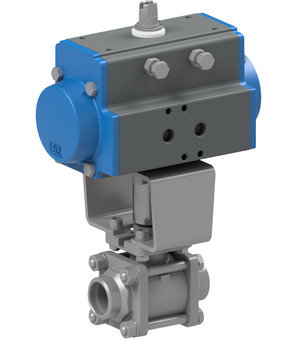

Ball valve with pneumatic actuator BA091-50-S0

Ball valve with pneumatic actuator BA091-50-S0

Ball valve with pneumatic actuator Series BA091-S0; For steam; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; ; Medium temperature -20...+198°C; Pressure range Steam 0...15bar; Nominal diameter 50mm; Length 136mm; Actuator PAS1005

Intrastat No.: 84818081
Country of origin: Italy
Weight: 11.53 Kg
Short Itemnumber:BA09150S0
https://www.stasto.eu/web/image/product.template/112166/image_1920?unique=bbc91d7

ball valve with pneumatic actuator series BA091-S0; for steam; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator; control pressure 5,5...8bar; ; medium temperature -20...+198°C; pressure range steam 0...15bar; nominal diameter 50mm; length 136mm; actuator PAS1005

913,70 € 913.7 EUR 913,70 €

price on request

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • DN
  • Length
  • Function
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
DN 50 mm
Length 136 mm
pressure
Pressure range 0...25 bar
characteristics
Actuator PAS1005
Ball valve made of stainless steel BA091-50-L
BA091-50-L x 1.0
Ball valve made of stainless steel BA091-50-L
Ball valve made of stainless steel Series BA091; For steam; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; Nominal diameter 50mm; Length 136mm
Add to Cart
Pneumatic actuator PAS1005
PAS1005 x 1.0
Pneumatic actuator PAS1005
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm
Add to Cart
