Ball valve with pneumatic actuator Series BA091-S0 Store

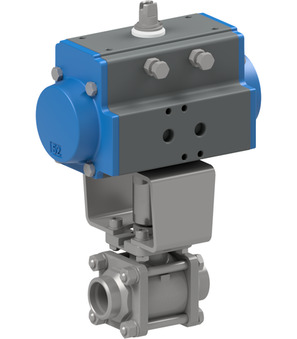

Ball valve with pneumatic actuator BA091-40-S0

Name: Ball valve with pneumatic actuator BA091-40-S0
Brand: STASTO
SKU: BA091-40-S0
Price: 729.8 EUR
Availability: InStock

Ball valve with pneumatic actuator Series BA091-S0; For steam; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; ; Medium temperature -20...+198°C; Pressure range Steam 0...15bar; Nominal diameter 40mm; Length 116mm; Actuator PAS0855

Intrastat No.: 84818081
Country of origin: Italy
Weight: 7.85 Kg
Short Itemnumber: BA09140S0

ball valve with pneumatic actuator series BA091-S0; for steam; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator; control pressure 5,5...8bar; ; medium temperature -20...+198°C; pressure range steam 0...15bar; nominal diameter 40mm; length 116mm; actuator PAS0855

729,80 € 729.8 EUR 729,80 €

Attachment interface VDI/VDE 3845
- -
Attachment interface 2 VDI/VDE 3845
- -
DN
- 40 mm
Length
- 116 mm
Function
- -
Pressure range
- 0...25 bar
Actuator
- PAS0855

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	40 mm
Length	116 mm
pressure
Pressure range	0...25 bar
characteristics
Actuator	PAS0855

BA091-40-L x 1.0

Ball valve made of stainless steel BA091-40-L

Ball valve made of stainless steel Series BA091; For steam; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; Nominal diameter 40mm; Length 116mm

Add to Cart

PAS0855 x 1.0

Pneumatic actuator PAS0855

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm

Add to Cart

RI3034 x 1.0
