BA091-20-S0

BA091-20-S0

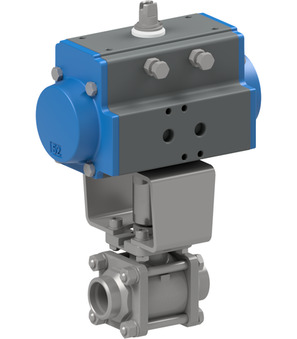

Ball valve with pneumatic actuator; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+198°C; Pressure range Steam 0...15bar; Nominal diameter 20mm; Pressure range 0...40bar; Length 76mm; Actuator PAS0635

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.04 Kg
Short Itemnumber: BA09120S0
https://www.stasto.eu/web/image/product.template/143186/image_1920?unique=3970b0b

ball valve with pneumatic actuator; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+198°C; pressure range steam 0...15bar; nominal diameter 20mm; pressure range 0...40bar; length 76mm; actuator PAS0635

482,50 € 482.5 EUR 482,50 €

price on request

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    Ball valve made of stainless steel BA091-20-L-A
    BA091-20-L-A x 1.0
    Ball valve made of stainless steel BA091-20-L-A
    Ball valve made of stainless steel Series BA091-L-A; For steam; ATEX II 2 G/D; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; Nominal diameter 20mm; Length 76mm
    Add to Cart
    Pneumatic actuator PAS0635
    PAS0635 x 1.0
    Pneumatic actuator PAS0635
    Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 10,6Nm
