Ball valve with pneumatic actuator Series BA091-S0 Store

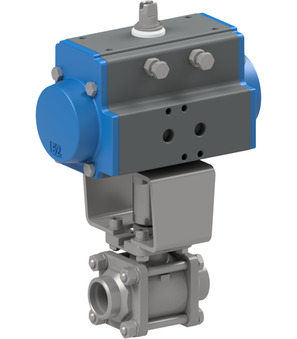

Ball valve with pneumatic actuator BA091-15-S0-3C-01-EP0S10PZZ

Name: Ball valve with pneumatic actuator BA091-15-S0-3C-01-EP0S10PZZ
Brand: STASTO
SKU: BA091-15-S0-3C-01-EP0S10PZZ

BA091-15-S0-3C-01
Ball valve with pneumatic actuator Series BA091-S0; V-ball 30-60°; For steam; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; ; Medium temperature -20...+198°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness; Pressure range Steam 0...15bar; Nominal diameter 15mm; Length 65mm; Actuator PAS0525
EP0S10PZZ
Mounted positioner; digitaler I/P-Stellungsregler, 4-20 mA; Actuator PAS052-270; Position feedback 4-20mA

Intrastat No.: 84818081
Country of origin: France
Weight: 3.511 Kg
Short Itemnumber: BA09115S03C01EP0S10PZZ

BA091-15-S0-3C-01
ball valve with pneumatic actuator series BA091-S0; V-ball 30-60°; for steam; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator; control pressure 5,5...8bar; ; medium temperature -20...+198°C; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness; pressure range steam 0...15bar; nominal diameter 15mm; length 65mm; actuator PAS0525
EP0S10PZZ
mounted positioner; digitaler I/P-Stellungsregler, 4-20 mA; actuator PAS052-270; position feedback 4-20mA

On request

Attachment interface VDI/VDE 3845
- -
Attachment interface 2 VDI/VDE 3845
- -
DN
- -
Length
- -
Function
- -
Pressure range
- -
Actuator
- -

This combination does not exist.

Availability:

Specifications
Spare Parts

No Specifications

BA091-15-S0-3C-01 x 1.0

Ball valve with pneumatic actuator BA091-15-S0-3C-01

Ball valve with pneumatic actuator Series BA091-S0; V-ball 30-60°; For steam; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; ; Medium temperature -20...+198°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness; Pressure range Steam 0...15bar; Nominal diameter 15mm; Length 65mm; Actuator PAS0525

Add to Cart

EP0S10PZZ x 1.0
