BA082-25-S0

Name: BA082-25-S0
Brand: STASTO
SKU: BA082-25-S0
Price: 625.6 EUR
Availability: InStock

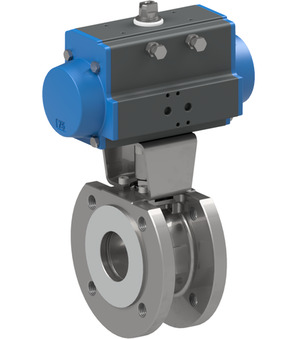

flanged ball valve with pneumatic actuator; flange ANSI150; housing, ball AISI 316; seals PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0..20bar; nominal diameter 25mm; length 46mm; actuator PAS0635

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.91 Kg
Short Itemnumber: BA08225S0

625,60 € 625.6 EUR 625,60 €

excl. tax

Brand
- STASTO

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0..20bar
Brand	STASTO

Spezifikationen
Spare Parts

Pressure range	0..20bar
Brand	STASTO

720006-25 x 1.0 Pcs

Flanged ball valve 720006-25

Flanged ball valve Series 720006; Flange ANSI 150 Metrical; Full bore; Body, Ball 1.4401; Seals PTFE/FKM; Pressure range 0...20bar; Medium temperature -20...+160°C; Nominal diameter 25mm; Length 46mm

PAS0635 x 1.0 Pcs

Pneumatic actuator PAS0635

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 10,6Nm

RI3007 x 1.0 Pcs
