BA082-150-D2

Name: BA082-150-D2
Brand: STASTO
SKU: BA082-150-D2
Price: 5847.1 EUR
Availability: InStock

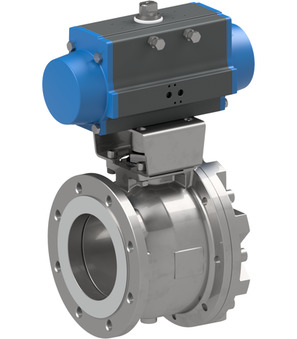

Flanged ball valve with pneumatic actuator; Flange ANSI150; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 4...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 150mm; Length 232mm; Actuator PAD160

Intrastat No.: 84818081
Country of origin: Italy
Weight: 87.98 Kg
Short Itemnumber: BA082150D2

flanged ball valve with pneumatic actuator; flange ANSI150; body, ball AISI 316; seals PTFE/FKM; double acting actuator; control pressure 4...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 150mm; length 232mm; actuator PAD160

5.847,10 € 5847.1 EUR 5.847,10 €

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

720006-150 x 1.0

Flanged ball valve 720006-150

Flanged ball valve Series 720006; Flange ANSI 150 metric, Full bore; Body, Ball 1.4401; Seals PTFE/FKM; Pressure range 0...20bar; Medium temperature -20...+160°C; Nominal diameter 150mm; Length 232mm

Add to Cart

PAD160 x 1.0

Pneumatic actuator PAD160

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 160mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 5,5bar 630Nm

Add to Cart

RI3006 x 1.0
