Ball valve made of stainless steel Series BA081 Store

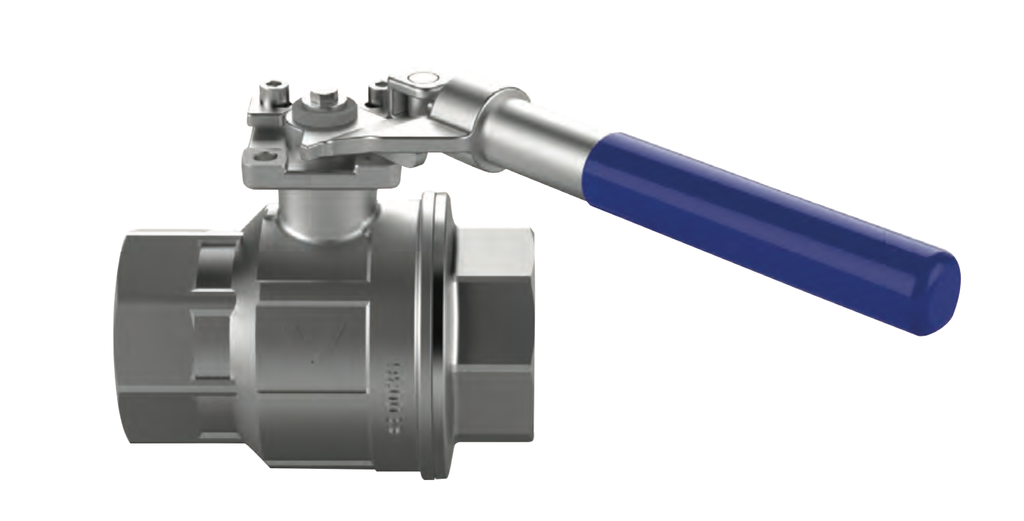

Ball valve made of stainless steel BA081-34-L-A-02

Name: Ball valve made of stainless steel BA081-34-L-A-02
Brand: STASTO
SKU: BA081-34-L-A-02
Price: 277.4 EUR
Availability: InStock

Ball valve made of stainless steel With spring return; Full bore; Two-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; Connection G 3/4"; Nominal diameter 20mm; Pressure range 0...64bar; Length 78mm

Intrastat No.: 84818081
Country of origin: Italy
Weight: 0.83 Kg
Short Itemnumber: BA08134LA02

ball valve made of stainless steel with spring return; full bore; two-parts type; female thread; body, ball AISI 316; seals PTFE/FKM; medium temperature -20...+160°C; connection G 3/4"; nominal diameter 20mm; pressure range 0...64bar; length 78mm

277,40 € 277.4 EUR 277,40 €

Connection
- G 3/4"
DN
- 20 mm
Length
- 78 mm
Design
- ATEX
Pressure range
- 0...64 bar

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
Connection	G 3/4"
DN	20 mm
Length	78 mm
design
Design	ATEX
pressure
Pressure range	0...64 bar

BA081-34-B-A x 1.0

Ball valve made of stainless steel BA081-34-B-A

Ball valve made of stainless steel Series BA081; ATEX II 2 G/D; Full bore; Two-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; Connection G 3/4"; Nominal diameter 20mm; Pressure range 0...64bar; Length 78mm

Add to Cart

RI6568 x 1.0
