BA081-10N-D0-A

Name: BA081-10N-D0-A
Brand: STASTO
SKU: BA081-10N-D0-A

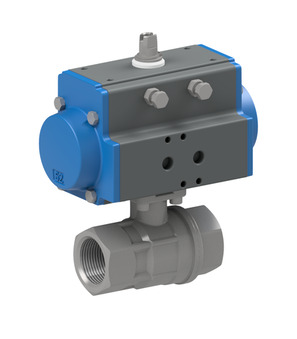

Ball valve with pneumatic actuator; ATEX II 2 G/D c T3; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; 1"NPT; Nominal diameter 25mm; Pressure range 0-64bar; Length 90mm; Actuator PAD052

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.824 Kg
Short Itemnumber: BA08110ND0A

ball valve with pneumatic actuator; ATEX II 2 G/D c T3; female thread; body, ball AISI 316; seals PTFE/FKM; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; 1"NPT; nominal diameter 25mm; pressure range 0-64bar; length 90mm; actuator PAD052

On request

Design
- ATEX

This combination does not exist.

Availability:

Specifications
Spare Parts

Design

ATEX

BA081-10N-B-A x 1.0

BA081-10N-B-A

Ball valve made of stainless steel; ATEX II 2 G/D; Full bore; Two-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; Connection 1"NPT; Nominal diameter 25mm; Pressure range 0...64bar; Length 90mm

Add to Cart

PAD052 x 1.0

Pneumatic actuator PAD052

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm

Add to Cart
