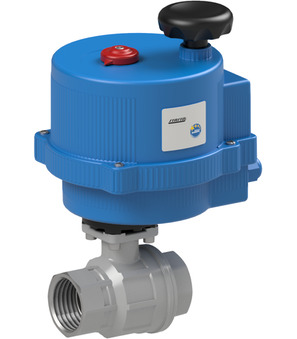

BA081-10-QH-01

Ball valve made of stainless steel Series BA081; Full bore; Two-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; Connection G 1"; Nominal diameter 25mm; Pressure range 0...64bar; Length 90mm

electrical actuator series VB; suitable for valves with 90° operation; for a maximum of 100 operations a day; limit switch-off is wired; 2 potential-free contacts for end position feedback; incl. manual emergency override; incl. accumulator for safety position NO; torque 15Nm; operating time 9s; flange ISO5211 F03/F05-Stern 11 mm; voltage 100-240VAC; protection class IP68; body aluminum

Square adapter Series VK; 11X9; Length 10mm; Material Stahl
