STASTO Allgemeine Preisliste (EUR)
BA080-40-PL

BA080-40-PL

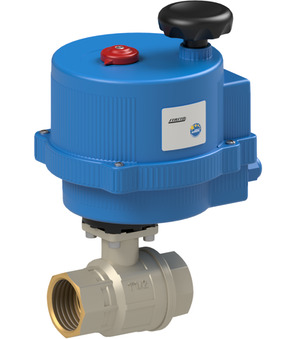

Ball valve with electrical actuator; Female thread; Body, Ball Brass; Seals PTFE/FKM/EPDM; Medium temperature 0...+100°C; RP 4"; DN 100mm; Pressure range 0-16bar; Length 225mm; Operating time 27s; Voltage 24VAC/DC; NC-Accumulator for safety position

Intrastat No.: 84818081
Country of origin: Italy
Weight: 15.5 Kg
Short Itemnumber: BA08040PL
https://www.stasto.eu/web/image/product.template/150319/image_1920?unique=3b396ba

ball valve with electrical actuator; female thread; body, ball brass; seals PTFE/FKM/EPDM; medium temperature 0...+100°C; RP 4"; DN 100mm; pressure range 0-16bar; length 225mm; operating time 27s; voltage 24VAC/DC; NC-accumulator for safety position

2.289,80 € 2289.8 EUR 2.289,80 €

Not Available For Sale

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0-16bar
Brand STASTO
Pressure range 0-16bar
Brand STASTO
Ball valve made of brass 2500-4"
2500-4" x 1.0 Pcs
Ball valve made of brass 2500-4"
Ball valve made of brass Series 2500; Bare shaft; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; RP 4"; Nominal diameter 100mm; Pressure range 0…16bar; Length 225mm; Flange ISO5211 F07; Square 17mm
Electrical actuator VB110-L-AKKU
VB110-L-AKKU x 1.0 Pcs
Electrical actuator VB110-L-AKKU
Electrical actuator Series VB-AKKU; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Protection class IP67; Including Accumulator for safety position; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 24VAC/DC; Function NC
