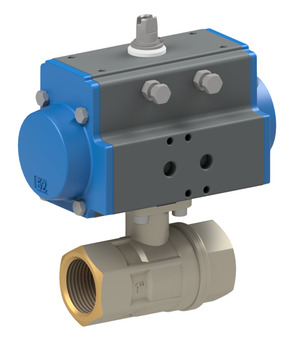

Ball valve with pneumatic actuator BA080-38-T0-ABS53-C001-03-C002-31-LV-2

Ball valve with pneumatic actuator BA080-38-T0-ABS53-C001-03-C002-31-LV-2

BA080-38-T0
ball valve with pneumatic actuator series BA080; body, ball brass; seals PTFE/FKM/EPDM; single acting actuator; safety position NO control pressure 5,5...8bar; medium temperature -20...+160°C; RP 3/8"; nominal diameter 10mm; pressure range 0-40bar; length 67mm; actuator PAS0525
ABS53
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 3/2-way-NAMUR-solenoid valve (NM32W1S-PR); actuator PAS052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-LV-2
connector; connector size 22mm; with integrated LED-yellow and VDR; voltage 24VAC/DC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.013 Kg
Short Itemnumber: BA08038T0ABS53C00103C00231LV2
https://www.stasto.eu/web/image/product.template/232446/image_1920?unique=bbc91d7

BA080-38-T0
ball valve with pneumatic actuator series BA080; body, ball brass; seals PTFE/FKM/EPDM; single acting actuator; safety position NO control pressure 5,5...8bar; medium temperature -20...+160°C; RP 3/8"; nominal diameter 10mm; pressure range 0-40bar; length 67mm; actuator PAS0525
ABS53
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 3/2-way-NAMUR-solenoid valve (NM32W1S-PR); actuator PAS052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-LV-2
connector; connector size 22mm; with integrated LED-yellow and VDR; voltage 24VAC/DC

412,70 € 412.7 EUR 412,70 €

price on request

  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Function
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us

Share

dimension
Valve interface Namur 1/4"
Designs
Connector size 22
design
Design With integrated LED-yellow and VDR
Electrical key figures
Voltage 24VDC / 48V/50-60Hz
characteristics
Coil C001
Actuator PAS052-270
