STASTO Allgemeine Preisliste (EUR)
Other materiales - A03 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Other materiales - A03
  6. BA080-30-PH

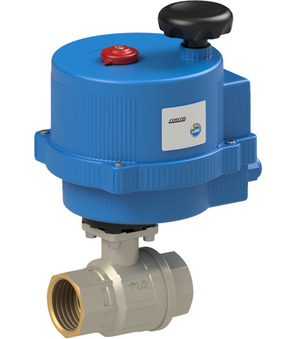

BA080-30-PH

BA080-30-PH

Ball valve with electrical actuator; Female thread; Body, Ball Brass; Seals PTFE/FKM; Medium temperature 0...+100°C; RP 3"; DN 80mm; Pressure range 0-16bar; Length 188mm; Operating time 9s; Voltage 100-240VAC; NC-Accumulator for safety position

Intrastat No.: 84818081
Country of origin: Italy
Weight: 10.01 Kg
Short Itemnumber: BA08030PH
https://www.stasto.eu/web/image/product.template/133995/image_1920?unique=c096d6d

ball valve with electrical actuator; female thread; body, ball brass; seals PTFE/FKM; medium temperature 0...+100°C; RP 3"; DN 80mm; pressure range 0-16bar; length 188mm; operating time 9s; voltage 100-240VAC; NC-accumulator for safety position

1.703,00 € 1703.0 EUR 1.703,00 €

price on request

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    Ball valve made of brass 2500-3"
    2500-3" x 1.0
    Ball valve made of brass 2500-3"
    Ball valve made of brass Series 2500; Bare shaft; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; RP 3"; Nominal diameter 80mm; Pressure range 0…16bar; Length 188mm; Flange ISO5211 F07; Square 14mm
    Add to Cart
    Electrical actuator VB060-H-AKKU
    VB060-H-AKKU x 1.0
    Electrical actuator VB060-H-AKKU
    Electrical actuator Series VB-AKKU; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Protection class IP67; Including Accumulator for safety position; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-Stern 14 mm; Voltage 100…240VAC; Function NC
    Add to Cart
