BA080-212-QH

BA080-212-QH

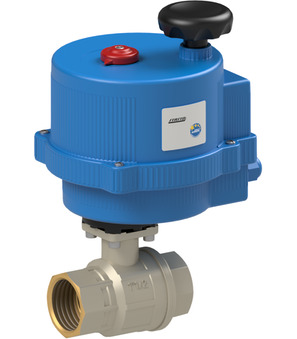

Ball valve with electrical actuator; Female thread; Body, Ball Brass; Seals PTFE/FKM/EPDM; Medium temperature 0...+100°C; RP 21/2"; DN 65mm; Pressure range 0-25bar; Length 165mm; Operating time 9s; Voltage 100...240VAC/DC; NO-Accumulator for safety position

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 7.9 Kg
Short Itemnumber: BA080212QH
https://www.stasto.eu/web/image/product.template/216345/image_1920?unique=535b278

ball valve with electrical actuator; female thread; body, ball brass; seals PTFE/FKM/EPDM; medium temperature 0...+100°C; RP 21/2"; DN 65mm; pressure range 0-25bar; length 165mm; operating time 9s; voltage 100...240VAC/DC; NO-accumulator for safety position

1.463,80 € 1463.8 EUR 1.463,80 €

Not Available For Sale

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0-25bar
Brand STASTO
Pressure range 0-25bar
Brand STASTO
Ball valve made of brass 2500-21/2"
2500-21/2" x 1.0 Pcs
Ball valve made of brass 2500-21/2"
Ball valve made of brass Series 2500; Bare shaft; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; RP 21/2"; Nominal diameter 65mm; Pressure range 0…25bar; Length 165mm; Flange ISO5211 F07; Square 14mm
Electrical actuator VB060-H-AKKU-N0
VB060-H-AKKU-N0 x 1.0 Pcs
Electrical actuator VB060-H-AKKU-N0
Electrical actuator Series VB-AKKU; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Protection class IP67; Including Accumulator for safety position; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-Stern 14 mm; Voltage 100…240VAC; Function NO
