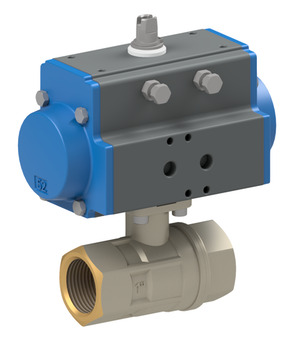

BA080-20-H8

BA080-20-H8

ball valve with hydraulic actuator; housing, ball brass; seals PTFE/FKM/EPDM; double acting actuator; control pressure 20...120bar; medium temperature -20...+160°C; RP 2"; nominal diameter 50mm; pressure range 0-40bar; length 138mm; actuator HAD28

Intrastat No.: 84818081
Country of origin: Italy
Weight: 10.98 Kg
Short Itemnumber: BA08020H8
https://www.stasto.eu/web/image/product.template/176633/image_1920?unique=f96ddcc

ball valve with hydraulic actuator; housing, ball brass; seals PTFE/FKM/EPDM; double acting actuator; control pressure 20...120bar; medium temperature -20...+160°C; RP 2"; nominal diameter 50mm; pressure range 0-40bar; length 138mm; actuator HAD28

999.999,00 € 999999.0 EUR 999.999,00 €

On request

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    Ball valve made of brass 2500-2"
    2500-2" x 1.0
    Ball valve made of brass 2500-2"
    Ball valve made of brass Series 2500; Bare shaft; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; RP 2"; Nominal diameter 50mm; Pressure range 0...40bar; Length 138mm; Flange ISO5211 F05; Square 11mm
    Add to Cart
    HAD28 x 1.0
    HAD28
    Hydraulic actuator; Double acting; Rotation angle 90°; Operating pressure range 10...120bar; Diameter 28mm; Flange ISO5211 F07
